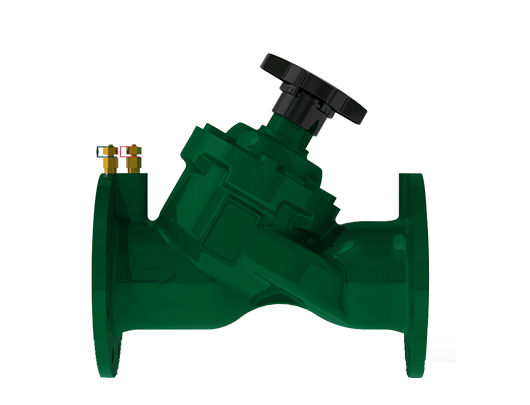

Product Name: Fixed Orifice Double Regulating Valve
Product Figure No.: Fig.1206
Product Pressure: PN16
Product Size: DN65 ~ DN300
Product Standard: BS 7350
Flange Connection Standard: BS EN 1092-2 PN16
• Y-shaped globe valve structure with equal percentage flow regulation characteristics.
• The opening degree is displayed in dual digits with a resolution of 1/10.
• The valve opening is displayed on one side of the valve shaft for easy adjustment.
• Plug in pressure test copper valve.
• The maximum opening can be locked.
• Can be installed in any direction.
• Maintenance free.
• Save installation space.
