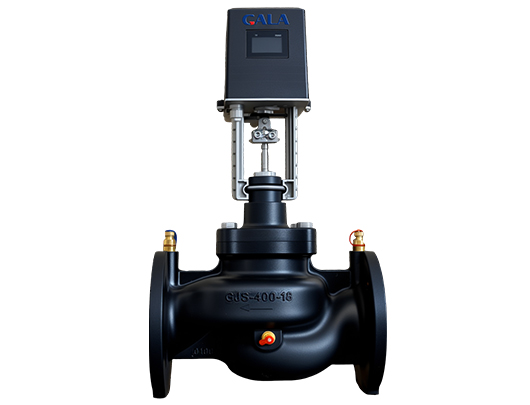

Product Name: Pressure Independent Control Valve
Product Figure No.: Fig.1230-DFY
Product Pressure: PN16/PN25
Product Size: DN50 ~ DN150
Product Standard: IEC 60534
Flange Connection Standard: ISO 7005, BS EN 1092-2
With integrated differential pressure and flow modulating controller.
Housing made of spheroidal graphite iron.
Differential pressure range 35…600 kPa.
Equipped with pressure 3 P/T test points.
Can be equipped with multiples famous brand electromotive actuators.
