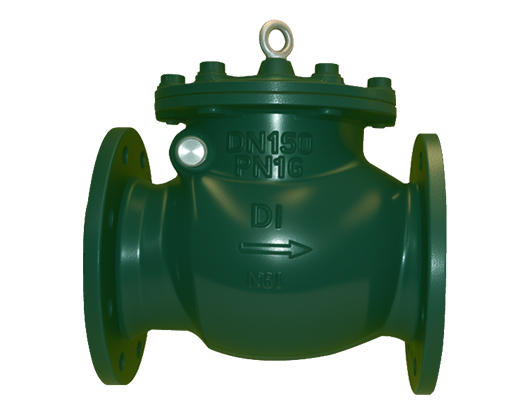

Product Name: Swing Check Valve
Product Figure No.: Fig.5111
Product Pressure: PN16
Product Size: DN50 ~ DN300
Product Standard: BS EN12334
Flange Connection Standard: BS EN 1092-2
• The swing type flange check valve opens or closes by itself based on the pressure of the medium.
• Swing check valve can be installed horizontally or vertically, but it is recommended to be installed horizontally. If installed vertically, the media flow must be from the bottom up. Swing check valve is opened when the medium flows in the direction valve disc swing, and closed when the medium flows in the opposite direction.
• Suitable for clean media, not suitable for media containing solid particles and high viscosity.
